FL – LEON
Product Description

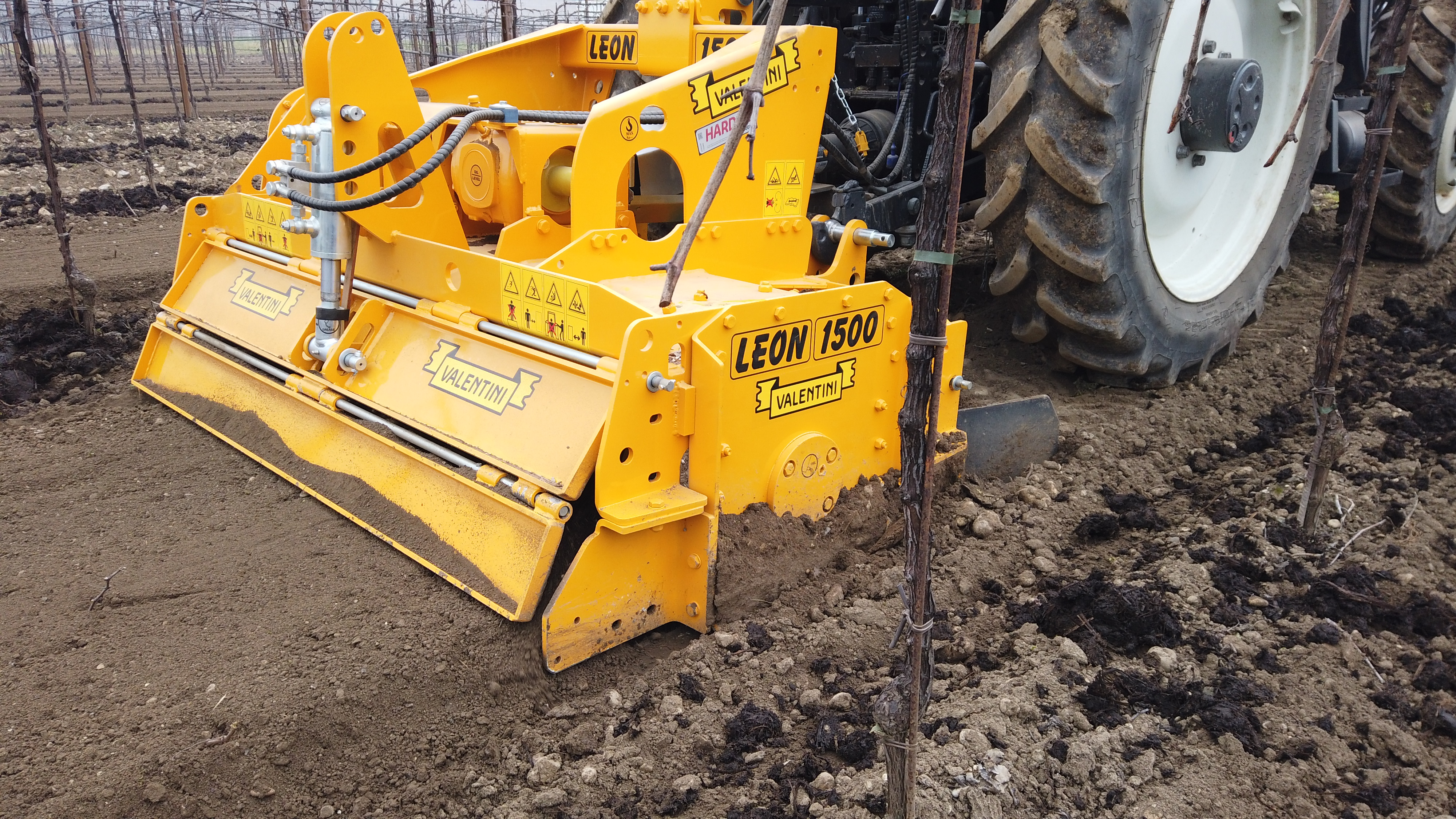

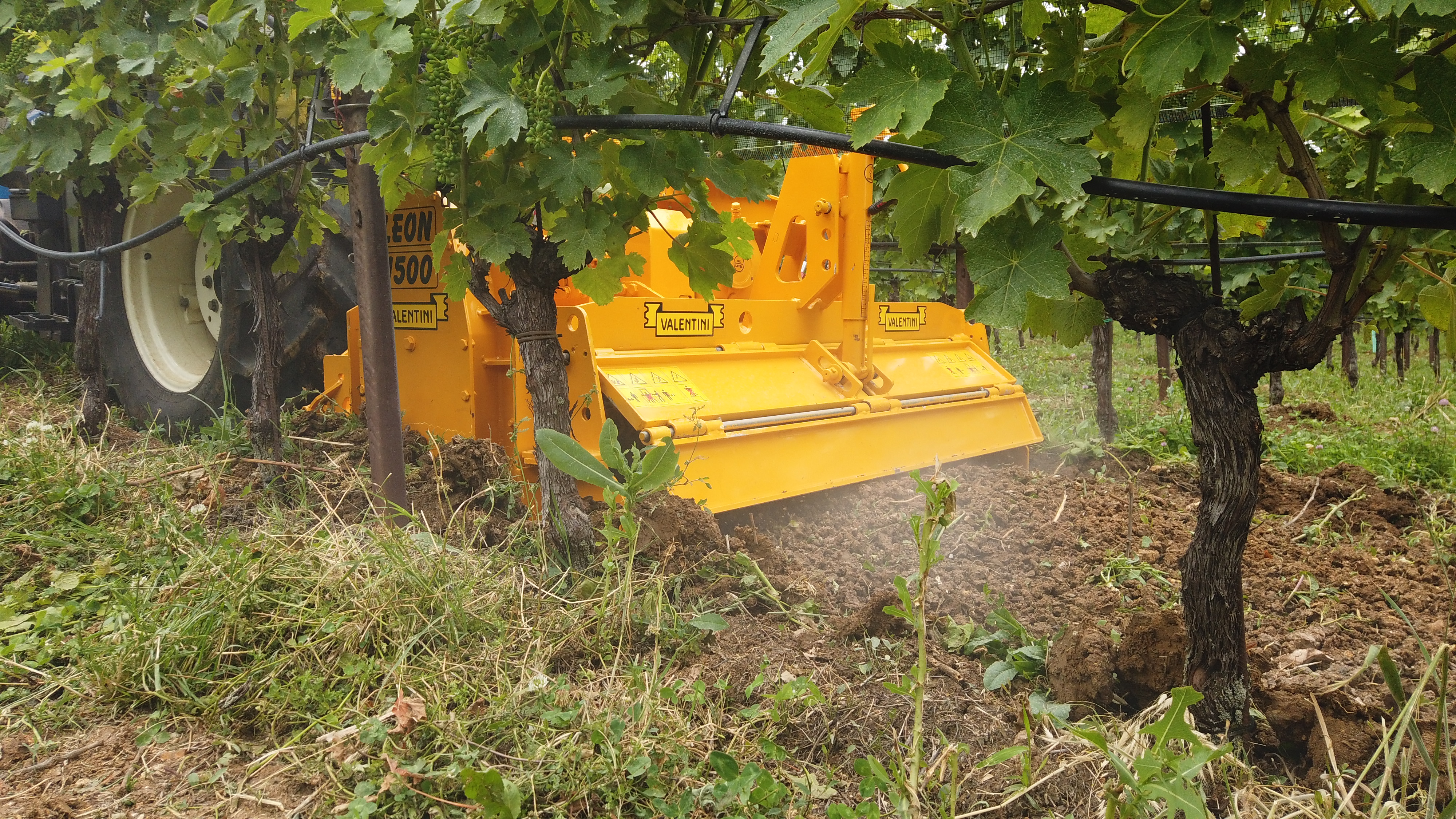

The LEON stone breaker is perfect for working between the rows of vineyards and orchards, even with low-power tractors due to its compact size. Ideal for making stony soils cultivable, it improves soil structure, promotes uniform plant growth and optimizes the distribution of water and mineral salts. An essential tool for farmers who want to achieve more even and productive soils.Standard Equipment
- 3 point universal hitch (Category 2 and 3N)
- Single speed unit, 540 rpm
- Reinforced rotor, 503 diam. with peaks
- Rotor with 25 Ø bits in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
- Transmission support and idle side support protection rings
- Central cardan with safety bolt (tractor side fork 1 3/8” 6)
- Single lateral transmission with gears in oil bath
- Bearing support with special seals “Labyrinth Bearing Protection by Valentini”
- Rear containment sheets and selection grids for crushed product that can be adjusted with a MECHANICAL jack
- Protective shroud casing and sledge on outer side
- Protective counter bonnet in “HIGHRESISTANCE AND WEAR RESISTANT STEEL”
- Variable transmission or super gearbox
- Hydraulic distributors requested from 2 to 4
- If necessary, equip the tractor with front ballast
MODEL | POWER HP | POWER kW | WORKING WIDTH mm | TOTAL FOOTPRINT mm | BITS** | WORKING DEPTH* ROCK BANK cm | WORKING DEPTH* SOFT GROUND cm | ROTOR rpm | WEIGHT* kg |
1000 | 70/110 | 51/81 | 1075 | 1295 | 73 | 7 | 15 | 323 | 1000 |
1300 | 80/110 | 59/81 | 1325 | 1545 | 89 | 7 | 15 | 323 | 1190 |
1500 | 90/110 | 66/81 | 1575 | 1795 | 108 | 7 | 15 | 323 | 1320 |
*Approximate **Net additional teeth to balance the rotor
TECHNICAL DATA SHEETAccessories - Kit
-
SINGLE HYDRAULIC JACK FOR BACK PLATE ADJUSTMENT
The back plates are adjusted by means of a hydraulic jack to increase or decrease the mulching of the material [...]
-
DOUBLE HYDRAULIC JACK FOR ADJUSTMENT OF THE MACHINE WORK DEPTH SLIDES
The back slides are adjusted by raising or lowering their position by means of hydraulic jacks, thus adjusting [...]
-
BACK SORTING GRILLE FOR MATERIAL SIZE
The material sorting grille is positioned between the rotor and the levelling plates, both the grille and the [...]
-
DOUBLE HYDRAULIC JACK ADJUSTMENT FOR COMPACTOR ROLLER AND STABILISER
The compactor roller and stabiliser is adjusted by means of two hydraulic jacks, it also has the function of a [...]
