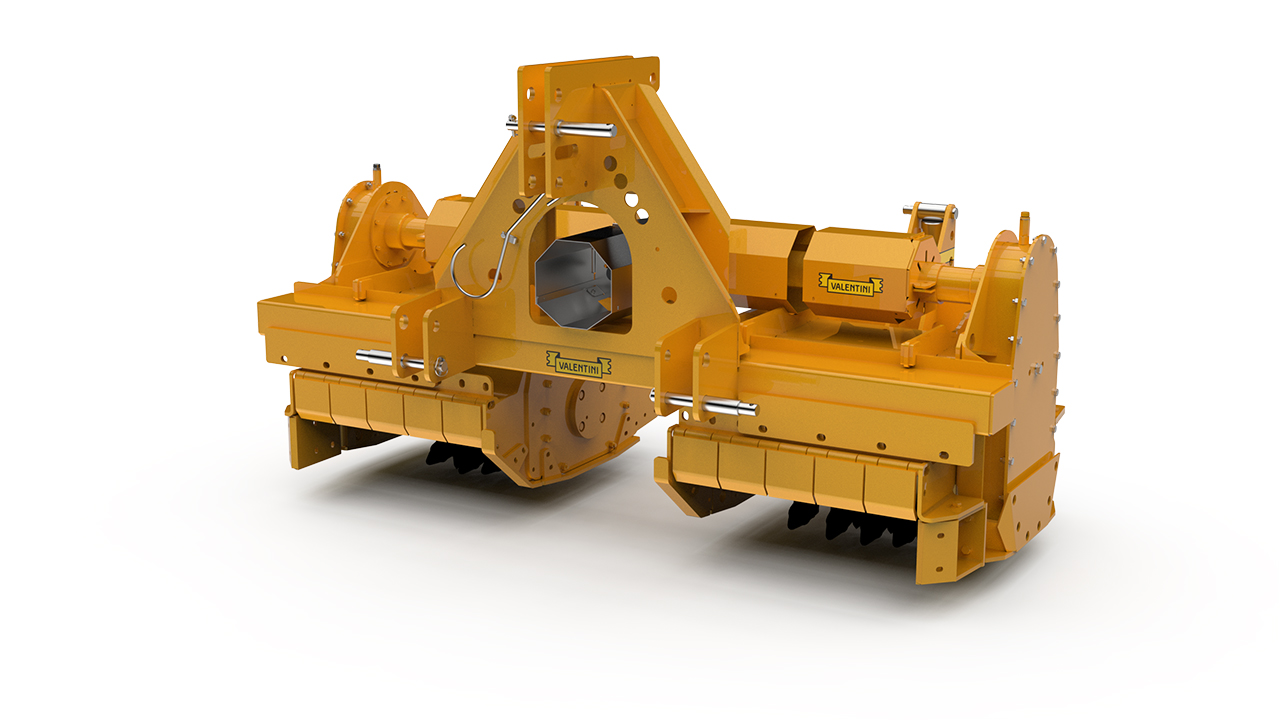

FRUTTI – STONE CRUSHER
Product Description
FRUTTI stone crusher HP 70/110 – kW 51/81Standard Equipment
- 3 point universal hitch (Category 2)
- Single speed unit, 540 rpm
- Reinforced rotor, 503 diam. with bits
- Rotor with bits 25 Ø in “HIGH RESISTANCE AND WEAR RESISTANT STEEL”
- Transmission support and idle side support protection rings
- Central cardan with safety bolt (tractor side fork 1 3/8” Z6)

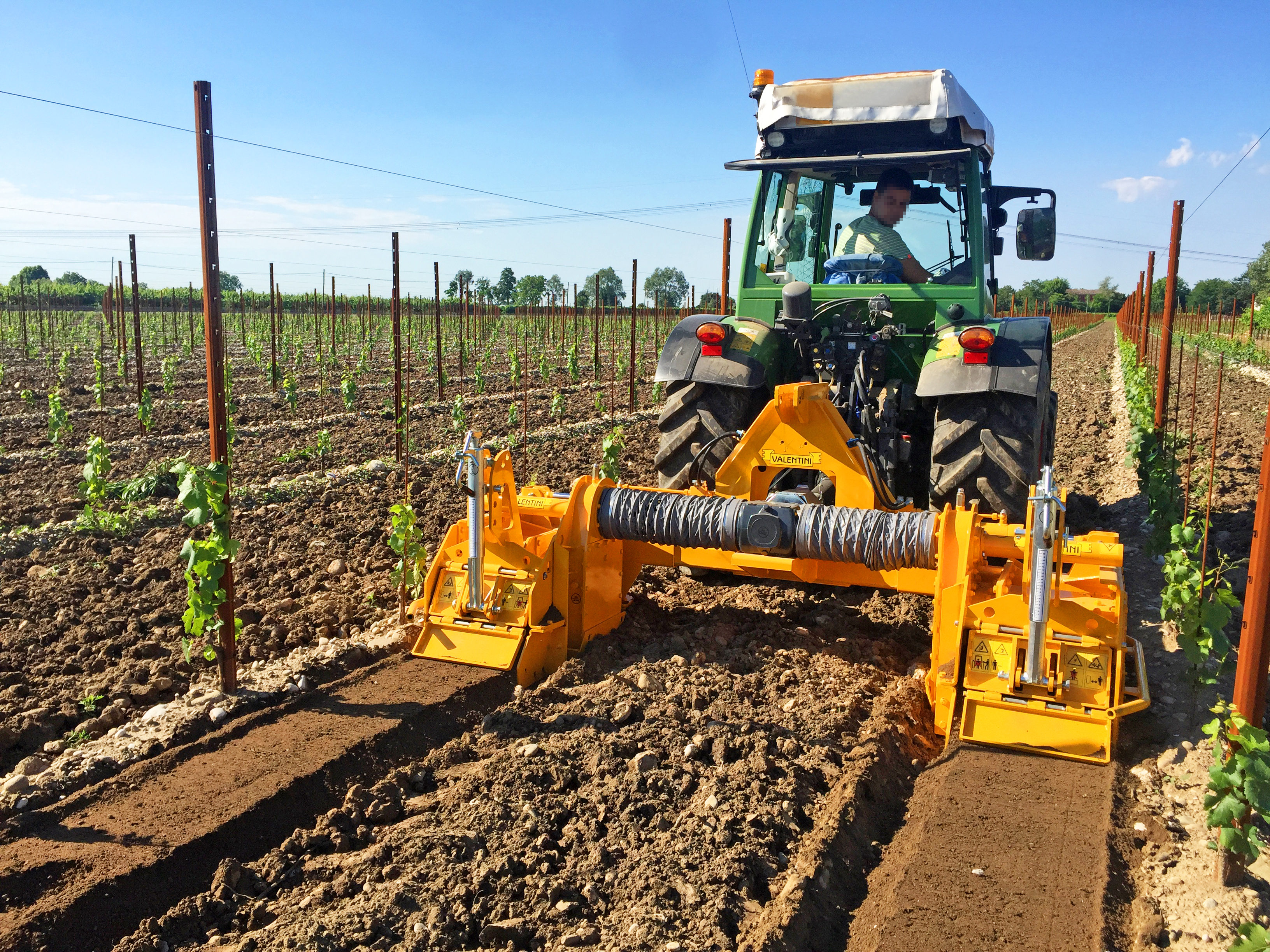

- Machine composed by one frame with two independent bodies
- Mechanical opening and closing of the bodies
- Each body is equipped wih lateral transmission with gears in oil bath
- Each body is equipped with idle side support in oil bath
- Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
- Rear containment sheets and selection grids for crushed product that can be adjusted with a MECHANICAL jack
- Protective shroud casing and sledge on outer side
- Protective counter bonnet in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
- Variable transmission or super gearbox
- Hydraulic distributors requested from 2 to 4
- If necessary, equip the tractor front ballast
| MODEL | POWER HP | POWER kW | WORKING WIDTH FOR EACH BODY | CLOSED FOOTPRINT | TOTAL FOOTPRINT | BITS** | WORKING DEPTH* ROCK BANK cm | WORKING DEPTH* SOFT GROUND cm | ROTOR rpm | WEIGHT* kg |
| 450X450 | 70/110 | 51/81 | 450 | 2058 | 2500 | 80 | 7 | 15 | 323 | 1400 |
| 600X600 | 90/110 | 66/81 | 600 | 2058 | 2500 | 100 | 7 | 15 | 323 | 1550 |
*Approximate **Net additional teeth to balance the rotor
TECHNICAL DATA SHEET
