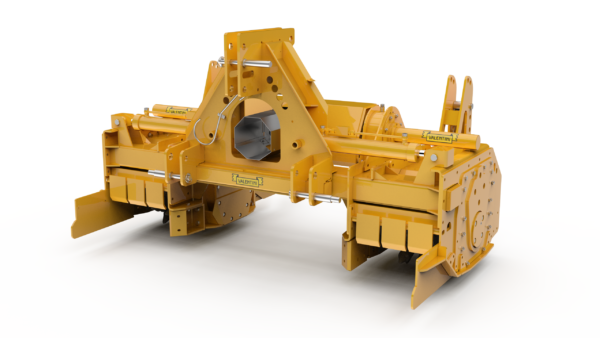

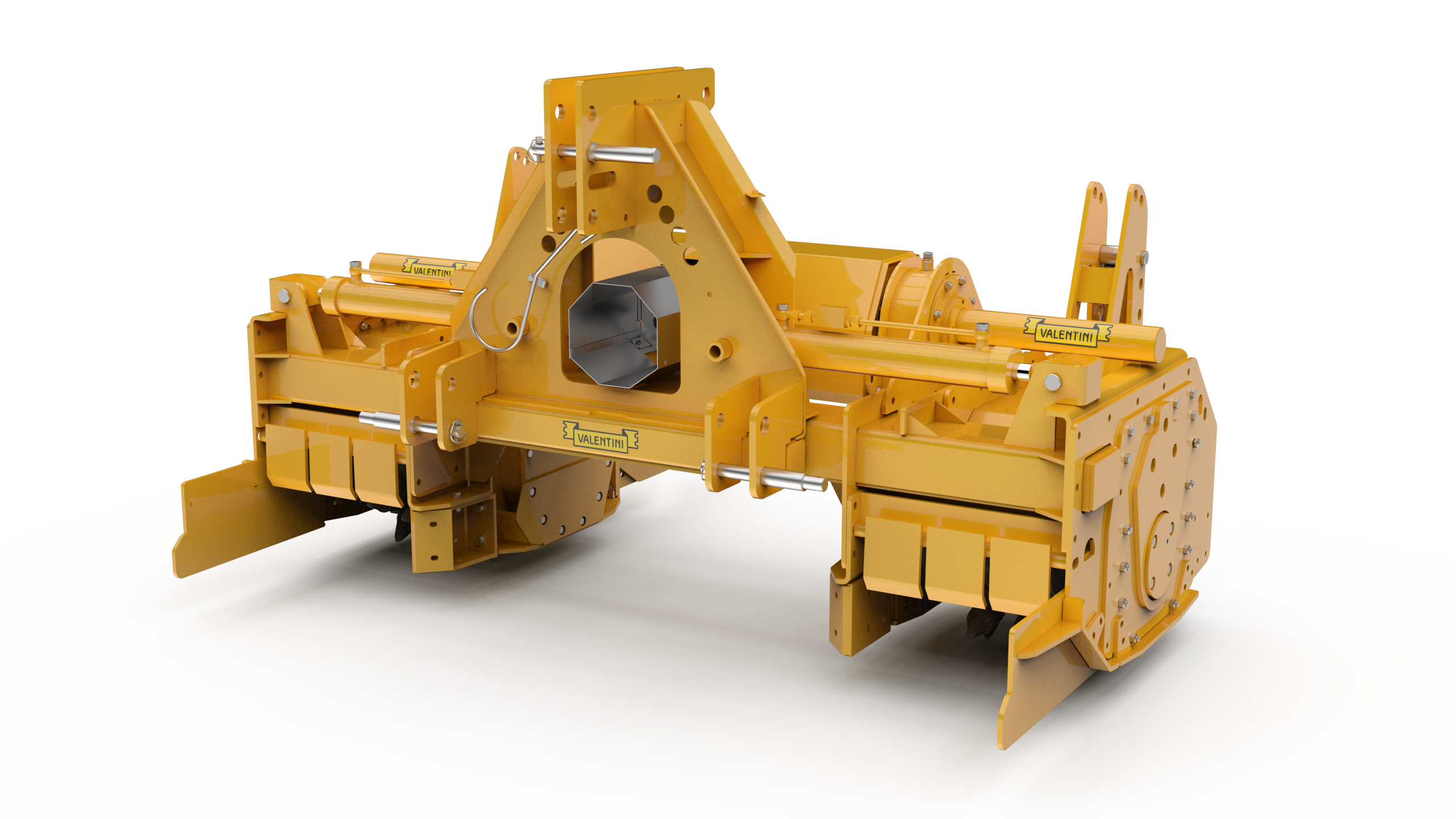

FRUTTI – STONE CRUSHER
Product Description
FRUTTI stone crusher HP 70/110 – kW 51/81Standard Equipment
- 3 point universal hitch (Category 2)
- Single speed unit, 540 rpm
- Reinforced rotor, 485 diam. with bits
- Rotor with bits 25 Ø in “HIGH RESISTANCE AND WEAR RESISTANT STEEL”
- Transmission support and idle side support protection rings
- Central cardan with safety bolt (tractor side fork 1 3/8” Z6)
- Machine composed by one frame with two independent bodies
- Hydraulic opening and closing of the bodies with 2 jacks and controlled block valves
- Each body is equipped wih lateral transmission with gears in oil bath
- Each body is equipped with idle side support in oil bath
- Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
- Rear containment sheets and selection grids for crushed product that can be adjusted with a MECHANICAL jack
- Protective shroud casing and sledge on outer side
- Protective counter bonnet in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
- Variable transmission or super gearbox
- Hydraulic distributors requested from 2 to 4
- If necessary, equip the tractor front ballast
| MODELL | POWER HP | POWER kW | WORKING WIDTH FOR EACH BODY | CLOSED FOOTPRINT | TOTAL FOOTPRINT | BITS N° | WORKING DEPTH* ON ROCK BANK cm | WORKING DEPTH* ROLLING GROUND cm | ROTOR rpm | WEIGHT kg |
| 1000 | 70/110 | 51/81 | 450 | 2100 | 3000 | 103 | 7 | 15 | 323 | 1400 |
Accessories - Kit
-
SINGLE MECHANICAL JACK FOR BACK PLATE ADJUSTMENT
The back plates are adjusted by means of a mechanical jack to increase or decrease the mulching of the materia [...]
-
DOUBLE MECHANICAL JACK FOR BACK PLATE ADJUSTMENT
The back plates are adjusted by means of mechanical jacks to increase or decrease the mulching of the material [...]
-
SINGLE HYDRAULIC JACK FOR BACK PLATE ADJUSTMENT
The back plates are adjusted by means of a hydraulic jack to increase or decrease the mulching of the material [...]
-
DOUBLE HYDRAULIC JACK FOR BACK PLATE ADJUSTMENT
The back plates are adjusted by means of hydraulic jacks to increase or decrease the mulching of the material, [...]
-
DOUBLE HYDRAULIC JACK FOR ADJUSTMENT OF THE MACHINE WORK DEPTH SLIDES
The back slides are adjusted by raising or lowering their position by means of hydraulic jacks, thus adjusting [...]
-
BACK SORTING GRILLE FOR MATERIAL SIZE
The material sorting grille is positioned between the rotor and the levelling plates, both the grille and the [...]
-
DOUBLE HYDRAULIC JACK ADJUSTMENT FOR COMPACTOR ROLLER AND STABILISER
The compactor roller and stabiliser is adjusted by means of two hydraulic jacks, it also has the function of a [...]
