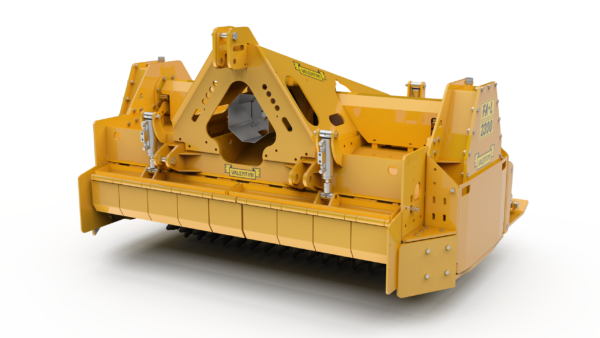

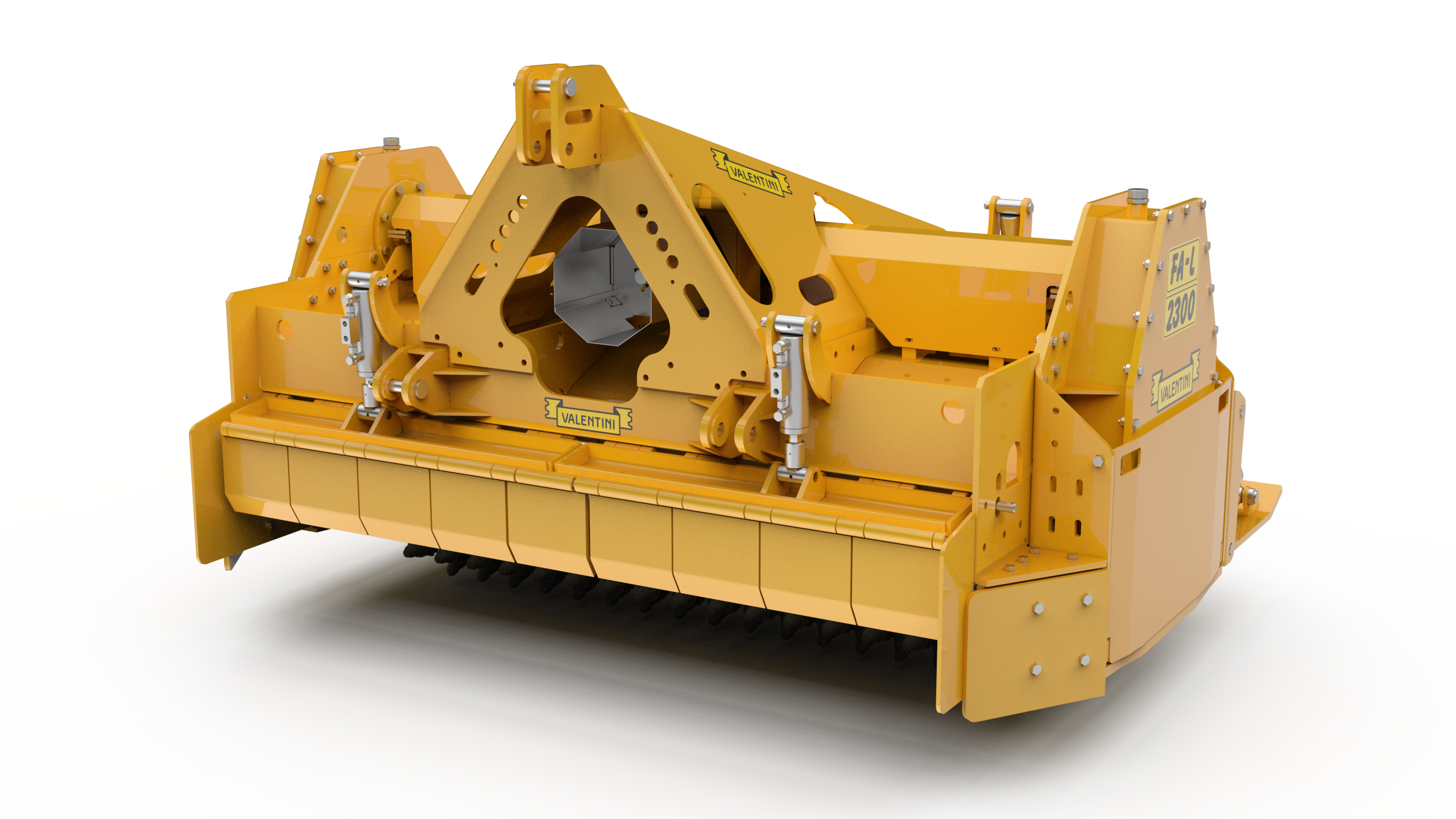

FA-L – ATTILA-L

Product Description

The ATTILA-L stone crusher is the perfect machine not only for farmers, but also for companies that work in the road maintenance sector, carrying out professional works in difficult conditions, using high-powered tractors equipped with “variable” speed drive. In the agricultural sector, the ATTILA-L transforms particularly rocky soil into arable land, as it crushes rocks and stones up to a depth of 40 cm. Initially sterile land characterised by rocky soil can subsequently be used to erect vineyards, orchards or to grow more traditional crops, thus significantly improving its value. The land is ploughed to improve consistency and facilitate the even spread of plant roots, which also grow more efficiently thanks to the mineral salts released by the crushed stones. Moreover, rainwater and irrigation water is more evenly absorbed and soil moisture is maintained over a longer period. For maintenance works, the ATTILA -L stone crusher is commonly used to both develop and level rural roads, as well as to grind rubble. This model is supplied standard with double side transmission with gears.

Standard Equipment

• 3 point universal hitch (3rd category up to 2500 model, 3rd and 4th category from 2800 model)
• Single speed unit, 1000 rpm
• Reinforced rotor, 800 diam. with peaks
• Rotor with 35 Ø peaks in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
• Protection rings on transmission support
• Central cardan with safety bolt (tractor side fork 1 3/4” Z20)
• Double lateral transmission with gears in oil bath “by Valentini-4G”
• Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
• Rear containment sheets and selection grids for crushed product that can be adjusted with a HYDRAULIC jack
• Front conveyor adjustable with HYDRAULIC jack
• HYDRAULIC adjustment of sledges for work depth
• Casing protection cap on both sides
• Protective counter bonnet in “HIGHRESISTANCE AND WEAR RESISTANT STEEL”
• “By Valentini” friction phasing system

Safety

• CE Safety protections
• Front protective rails
• Anti-intrusion protections for transport
• Parking legs

Tractor equipment notes

• Variable transmission
• Hydraulic distributors requested from 2 to 6
• If necessary, equip the tractor with front ballast

MODEL	POWER HP	POWER kW	WORKING WIDTH	TOTAL FOOTPRINT	N° PEAKS	WORKING DEPTH* ON ROCK BANK cm	WORKING DEPTH* ROLLING GROUND cm	RPM ROTOR
1800	200/400	147/294	1745	2210	152	19	40	258
2000	220/400	162/294	1995	2460	170	19	40	258
2300	240/400	176/294	2245	2710	198	19	40	258
2500	280/400	206/294	2495	2960	214	19	40	258
2800	300/400	221/294	2745	3210	232	19	40	258
3000	320/400	235/294	2995	3460	250	19	40	258
